How to Select an Air Dryer for Your Oil-Free Compressor System

Dryer Selection Guide

An oil-free air compressor eliminates oil contamination — but it cannot eliminate moisture. Every oil-free system requires a compressed air dryer matched precisely to the application’s dew point requirement, flow rate, and operating conditions. Choose the wrong dryer and you either over-spend on unnecessary capacity or under-deliver on air quality. This guide gives you the framework to choose correctly.

✦ Dryer Technology Comparison
✦ Dew Point vs Application
✦ Sizing Correction Factors

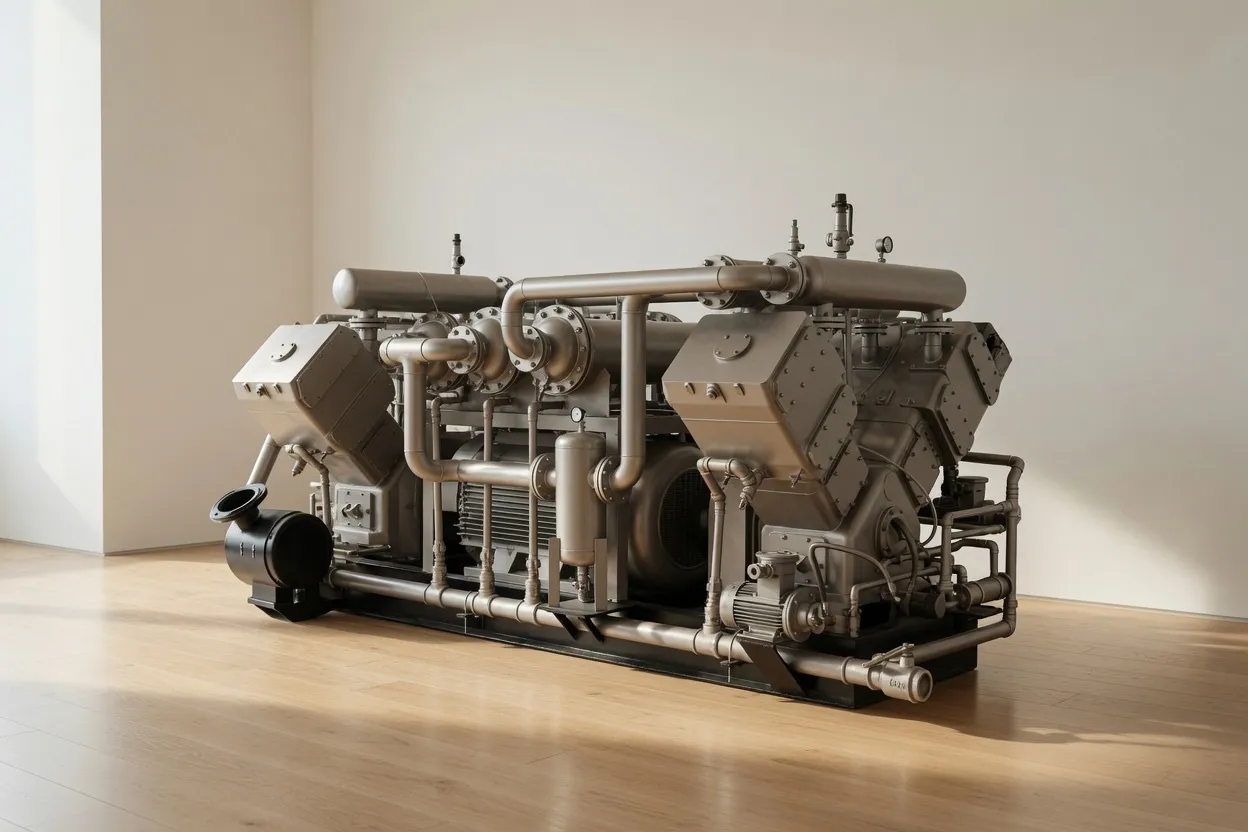

Air dryer selection for oil-free compressor system

Why Oil-Free Compressors Still Need Dryers — And Why the Right Choice Matters

The term “oil-free” describes the lubrication technology of the compression element — it does not describe the moisture content of the compressed air produced. Atmospheric air drawn into any compressor contains water vapour. When that air is compressed, the water vapour concentration increases proportionally to the compression ratio. At 100 PSI (7 bar), the air volume is compressed to roughly one-seventh of its original volume, concentrating the moisture content sevenfold. When this air subsequently cools in distribution pipework or at the point of use, that concentrated moisture condenses into liquid water.

For oil-free systems in quality-critical applications — pharmaceutical, food processing, electronics, laser cutting — this moisture problem carries additional weight. These applications rely on oil-free air specifically because they cannot tolerate contamination. Liquid water in a pharmaceutical process air line is a contamination event just as surely as oil carryover would be. The compressed air dryer is therefore not an optional add-on to an oil-free system; it is as integral to the system’s quality performance as the compressor itself.

The right dryer choice depends on three questions: What dew point does your application require? What flow rate and inlet conditions does the dryer need to handle? And what energy and maintenance cost profile fits your operating model? This guide addresses each question systematically.

The Four Dryer Technologies for Oil-Free Systems

Four distinct drying technologies are used in compressed air systems. Each achieves a different dew point, has a different energy profile, and suits a different range of applications. Understanding their operating principles is the prerequisite for correct selection.

Technology 1

Refrigerated Air Dryer

Dew point: +2°C to +10°C
Energy: Low (0.5–1.5 kW per 100 CFM)

How it works: Compressed air enters a heat exchanger where a refrigerant circuit chills it to near its pressure dew point (typically 2–3°C). Water vapour condenses, is separated and drained, and the dried air is reheated slightly before distribution. Non-cycling types run the refrigerant compressor continuously; cycling types stop the refrigerant circuit during low-demand periods, saving electricity.

Pressure dew point of +3°C means the air will not form condensate in any pipe or equipment above 3°C. At Australian inland summer conditions where minimum overnight temperatures often stay above 10°C, a refrigerated dryer provides effective protection for all indoor distribution runs.

✅ Lowest purchase cost of any dryer type

✅ Lowest direct energy consumption

✅ Simple, reliable — few moving parts

✅ No compressed air consumption (unlike desiccant)

❌ Cannot achieve dew points below 0°C

❌ Performance degrades in high ambient temperature (>35°C)

❌ Not suitable for sub-zero outdoor pipework or ISO Class 1 water requirement

Best for: General manufacturing, workshops, food indirect contact, most Australian indoor systems

Technology 2

Heatless Desiccant Dryer (Pressure Swing)

Dew point: −20°C to −70°C
Purge loss: 10–15% of flow

How it works: Two vessels of molecular sieve or silica gel desiccant alternate between adsorbing moisture (one vessel drying the air) and regenerating (the other vessel purging moisture to atmosphere using a fraction of the dried output air). No heat is applied — regeneration relies purely on pressure differential (the spent vessel is depressurised). Simple, robust, no electrical heating elements to fail.

The 10–15% purge air consumption is a critical sizing consideration: a heatless dryer rated at 100 CFM output requires 113–118 CFM from the compressor. This purge must be included in compressor sizing. At AUD $0.16/kWh and typical compressor efficiency, the purge loss on a 100 CFM system costs approximately AUD $4,000–6,000 per year.

✅ Achieves very low dew points (−40°C to −70°C)

✅ No electrical heaters — simple maintenance

✅ Reliable in hot ambient conditions (unlike refrigerated)

✅ Works at any ambient temperature

❌ 10–15% compressed air purge loss (ongoing energy cost)

❌ Desiccant replacement every 3–5 years

❌ Sensitive to inlet oil contamination (deactivates desiccant)

Best for: Medical, pharmaceutical, instruments, outdoor/freezing lines, ISO 8573 Class 1

Technology 3

Heated Desiccant Dryer (Blower Purge)

Dew point: −40°C to −70°C
Purge loss: 1–3% only

How it works: Similar two-vessel desiccant design to heatless, but an electric heater warms the purge air (or an external blower supplies ambient air for regeneration) — dramatically reducing the volume of dried compressed air needed for regeneration. Purge loss drops to 1–3%, making this the most energy-efficient desiccant option for systems where dew points below −20°C are required.

The blower-purge variant uses ambient air (not compressed air) for regeneration, effectively reducing purge loss to near zero at the cost of a small blower motor and heater element. This configuration is recommended for systems above 200 CFM where the compressed air purge savings over the heatless design justify the additional equipment cost.

✅ Low compressed air purge loss (1–3%)

✅ Achieves −40°C to −70°C dew point

✅ Best lifecycle cost for high-flow desiccant systems

❌ Heater element replacement every 3–5 years

❌ Higher purchase cost than heatless

❌ Blower adds maintenance item

Best for: Large pharma/semiconductor systems needing low dew point at minimum compressed air consumption

Technology 4 — Oil-Free Systems Only

Heat of Compression (HOC) Desiccant Dryer

Dew point: −20°C to −40°C
Zero additional energy cost

How it works: The hot discharge air from the compressor (150–200°C from dry oil-free screws) is routed through the regenerating desiccant vessel before the aftercooler. The compression heat regenerates the desiccant without any additional energy input. This technology is only viable with oil-free compressors — oil contamination from an oil-injected machine would permanently deactivate the desiccant bed.

The HOC dryer delivers −40°C dew point (ISO 8573-1 Class 1 water) with zero additional energy cost and zero compressed air purge loss. For 24/7 continuous-duty oil-free rotary screw systems, it represents the most efficient drying configuration available — and is only accessible to oil-free compressor users.

✅ Zero additional energy for drying

✅ Zero compressed air purge loss

✅ Achieves ISO 8573-1 Class 1 water (−40°C)

✅ Unique advantage of oil-free compression systems

❌ Requires 100% duty compressor (not suitable for piston/intermittent)

❌ Higher capital cost than refrigerated

❌ Must be specified at compressor purchase — retrofit difficult

Best for: 24/7 oil-free screw systems in pharma, food direct contact, medical — the lowest TCO drying solution available

Matching Dew Point to Your Application: The Selection Matrix

The single most consequential dryer selection decision is the target dew point — and it must be matched to the application’s actual requirement, not over- or under-specified. Under-specification leaves moisture problems unsolved. Over-specification wastes capital and energy on drying capability the process does not need.

Application	Required Dew Point (pdp)	ISO 8573-1 Water Class	Correct Dryer Type
General workshop tools (indoor)	+7°C	Class 4–5	Refrigerated
Spray painting, powder coating	+3°C	Class 3–4	Refrigerated (cycling)
Food packaging (indirect)	+3°C	Class 3	Refrigerated
Laser cutting assist gas	−26°C	Class 1–2	Refrigerated pre-dryer + desiccant polisher
Food direct contact / beverage	−26°C	Class 1	Desiccant or HOC
Medical instrument air (AS 2896)	−26°C	Class 1	Heatless desiccant
Pharmaceutical GMP / FDA	−40°C	Class 1	Heated desiccant or HOC
Electronics / semiconductor	−40°C to −70°C	Class 1	Heated desiccant (blower purge)
Outdoor pipework (cold climate)	Below min. ambient temp	Class 1–2	Heatless desiccant

The laser cutting entry warrants explanation: a two-stage approach — refrigerated pre-dryer followed by a smaller desiccant polisher — is often more economical than a full-flow desiccant dryer. The refrigerated stage removes 80–90% of moisture at low energy cost; the desiccant stage polishes the remaining moisture to −26°C or lower at a fraction of the flow volume and energy. For systems above 150 CFM, this combination typically has lower lifecycle cost than a full-flow heatless desiccant dryer.

Dryer Sizing: Why Catalogue CFM Is Never the Whole Story

Every dryer manufacturer publishes a rated CFM capacity — but that rating applies only at a specific set of inlet conditions: typically 35°C inlet air temperature, 100 PSI inlet pressure, and 25°C ambient temperature. When your actual conditions differ from these reference conditions, the dryer’s effective capacity changes — sometimes significantly. For Australian sites with high ambient temperatures and high inlet air temperatures from non-aftercooled systems, the correction can reduce effective dryer capacity by 30–40% below the catalogue rating.

Always apply correction factors before comparing catalogue CFM ratings to your system’s actual flow:

Parameter	Reference Condition	Correction Factor	Effect
Inlet air temperature	35°C	−3% per °C above 35°C	At 45°C inlet (common in summer): capacity drops 30%
Ambient temperature	25°C	−2% per °C above 25°C	At 40°C ambient: capacity drops 30%
Inlet pressure	100 PSI	+2% per 14.5 PSI above / −2% below	At 145 PSI: capacity increases ~6% — minor positive effect
Required dew point (refrig.)	+3°C pdp	+10% per degree warmer target	+7°C target: capacity increases ~40% (warmer = easier)
Altitude	Sea level	−3% per 300 m elevation	At 900 m elevation: capacity drops ~9%

⚠️ Australian Summer Sizing Example

System flow: 100 CFM · Inlet air temp: 45°C (summer) · Ambient: 40°C · Pressure: 100 PSI
Temperature correction: (45−35) × 3% = 30% reduction → multiply by 0.70
Ambient correction: (40−25) × 2% = 30% reduction → multiply by 0.70
Combined corrected capacity: Catalogue rating × 0.70 × 0.70 = Catalogue × 0.49
→ To deliver 100 CFM effective capacity in summer: specify a dryer rated at 100 ÷ 0.49 = 204 CFM catalogue rating

This example — where Australian summer conditions require specifying a dryer rated at more than twice the actual system flow — is not unusual. It is the direct consequence of selecting a dryer at catalogue conditions for an Australian summer site without applying correction factors. Refrigerated dryers are most affected by high ambient temperature; desiccant dryers are less temperature-sensitive but still require inlet temperature correction.

The Combination Dryer Approach: Refrigerated Pre-Dryer + Desiccant Polisher

For applications requiring dew points below +3°C but with high flow rates, the combination approach — a refrigerated dryer as the primary stage followed by a desiccant polisher — is often the most energy-efficient and cost-effective solution. The principle is straightforward: let the refrigerated dryer remove the bulk of moisture at low energy cost (reducing the moisture load from atmospheric humidity to near saturation at +3°C), then use the smaller desiccant stage to remove the remaining moisture to the required low dew point.

The economic benefit is significant. A heatless desiccant dryer consumes 10–15% purge air. If the refrigerated pre-dryer reduces the moisture load by 80%, the desiccant stage can be sized for only 20–30% of the total flow — dramatically reducing purge air consumption and desiccant bed volume. For a 200 CFM system targeting −40°C dew point, this combination approach can reduce annual desiccant purge air loss by 60–75% compared to a full-flow heatless desiccant dryer.

Stage 1

Refrigerated Dryer

Full flow · Removes 85% of moisture · Output: +3°C pdp · Low energy cost

Stage 2

Desiccant Polisher

25–30% of flow handled · Removes residual moisture · Output: −40°C pdp · Minimal purge loss

Result

Combined Output

−40°C pdp at 60–75% lower purge loss than full-flow desiccant · Best lifecycle cost for large high-dew-point systems

Dryer Maintenance Requirements: What Each Technology Demands

Total cost of ownership for a dryer includes not just purchase price and energy, but maintenance labour, replacement parts, and the cost of performance degradation when maintenance is deferred. Here is what each technology requires in practice for Australian industrial users:

Dryer Type	Scheduled Maintenance Items	Service Interval	Approx. Annual Cost
Refrigerated	Pre-filter element · Coalescer element · Condensate drain test · Heat exchanger inspection · Refrigerant level check (5-yearly)	Annual	AUD $150–400
Heatless Desiccant	Pre-filter element · After-filter element · Desiccant replacement (3–5 yrs) · Valve inspection · Drain inspection	Annual (filter) + 4-yearly (desiccant)	AUD $300–700 + desiccant
Heated Desiccant	Pre-filter · After-filter · Heater element (3–5 yrs) · Desiccant (4–6 yrs) · Blower motor · Valve inspection	Annual + component replacements	AUD $400–1,000
HOC Desiccant	Pre-filter · After-filter · Desiccant (4–7 yrs) · Valve inspection · Switching valve test	Annual + 5-yearly desiccant	AUD $300–600 + desiccant

The critical maintenance item for all desiccant dryers — frequently neglected in practice — is confirming that the desiccant is achieving its rated dew point. A desiccant bed that has been contaminated with oil, overloaded with moisture, or simply degraded through age continues to operate mechanically (the valves cycle, the regeneration sequence runs) while delivering a worse-than-specified dew point. Annual dew point verification with a calibrated sensor downstream of the dryer is the only reliable confirmation of desiccant performance.

Dryer Selection & ISO 8573 Compliance for Oil-Free Systems

For oil-free compressed air applications requiring ISO 8573 quality certification, the dryer specification must be documented as part of the compressed air system’s quality plan. ISO 8573-1 classifies water content in three sub-categories: vapour pressure dew point, liquid water, and total water vapour content. The relevant parameter for dryer selection is pressure dew point (pdp) — the temperature at which water vapour in the compressed air reaches saturation at the system operating pressure.

For a facility claiming ISO 8573-1 Class 1 water (≤−26°C pdp) in its compressed air quality documentation, the dryer specification, installation record, and ongoing performance verification (dew point monitoring) must all be on file. The compressor type (oil-free) addresses the oil class (Class 0 or 1); the dryer addresses the water class; upstream and downstream filtration addresses the particle class. All three dimensions must be specified and maintained for a complete ISO 8573 quality claim.

📋 ISO 8573 Dryer Requirement Summary

ISO Class 1 water (≤−26°C pdp) → Heatless or heated desiccant; HOC for oil-free screw

ISO Class 2 water (≤−40°C pdp or ≤0.5 g/m³) → Heated desiccant or HOC

ISO Class 3 water (≤+3°C pdp) → Refrigerated dryer (cycling or non-cycling)

ISO Class 4 water (≤+7°C pdp) → Refrigerated dryer (standard)

Complete Drying System Design from Australia Oil Free Air Compressor

Every oil-free compressor proposal from Australia Oil Free Air Compressor Co., Ltd. includes a dryer specification — matched to your application’s ISO 8573 requirement, corrected for your site’s summer ambient temperature, and sized for the actual system flow including dryer purge losses where applicable. We do not append a generic dryer note to a compressor quotation; we specify the correct dryer technology, capacity, and filter train for your specific conditions.

Our team at the Charlton Industrial Area facility has experience with all four dryer technologies described in this guide, and with the combination approaches that deliver the best lifecycle economics for large oil-free systems. We supply matched dryer-compressor packages and standalone dryer systems for upgrade or replacement projects on existing installations.

Email [email protected] with your application, required dew point, flow rate, and site summer ambient temperature for a dryer specification and lifecycle cost comparison.

Australia Oil Free Air Compressor dryer system

Get a Dryer Specification for My System

CM132DV — Oil-Free VSD Screw Compressor with HOC Dryer Integration

The CM132DV water-lubricated oil-free screw compressor is the ideal candidate for HOC (heat of compression) dryer integration — the only drying configuration in this guide that delivers ISO 8573-1 Class 1 water (−40°C pdp) at zero additional energy cost. The compressor’s continuous-duty rating ensures the HOC dryer receives consistent hot discharge air for desiccant regeneration at all times, and the water-injection cooling keeps aftercooler temperatures stable — creating the predictable thermal conditions that HOC dryers require for reliable dew point performance. For pharmaceutical, food direct-contact, and semiconductor applications requiring both ISO Class 0 oil-free air and Class 1 moisture at the lowest possible lifecycle energy cost, this combination is unmatched.

View CM132DV Specifications

Frequently Asked Questions

Can a refrigerated dryer work in a 40°C+ compressor room?
+

A refrigerated dryer can physically operate at 40°C+ ambient, but its effective capacity is severely reduced — as shown in the correction factor table above, effective capacity may drop 40–50% below catalogue rating at 40°C ambient. If your compressor room regularly reaches 40°C+, you must either: (1) specify a refrigerated dryer with 2× the catalogue capacity to account for derating, (2) improve compressor room ventilation to reduce ambient temperature, or (3) switch to a desiccant dryer technology, which is much less temperature-sensitive. For hot Australian sites, desiccant dryers often have better long-term economics despite higher initial cost.

How do I verify that my dryer is achieving its rated dew point?
+

The only reliable method is periodic measurement with a calibrated capacitive dew point sensor downstream of the dryer. Dryer-mounted indicators or controller displays are reference only — they estimate performance based on set conditions rather than measuring actual outlet dew point. Portable dew point analysers can be rented for periodic checks. For ISO 8573-certified applications, annual dew point measurement by a qualified compressed air auditor with a traceable calibrated instrument is best practice. For continuous monitoring, fixed dew point transmitters installed in the main distribution header provide real-time dew point data.

What size dryer do I need if I plan to expand my compressor capacity later?
+

Size the dryer for your planned future compressor capacity — not the current installed capacity. A dryer undersized relative to future compressor output will either be bypassed (eliminating drying) or throttle the system pressure. Adding a second dryer later in parallel is more complex and expensive than specifying the right size from the start. For VSD systems, size the dryer for the compressor’s maximum rated FAD at worst-case inlet conditions, as the VSD may ramp to maximum speed during peak demand periods.

Should the dryer be before or after the receiver tank?
+

The optimal position is after the receiver tank (wet receiver before, dry receiver optional after). Placing the receiver before the dryer provides two benefits: (1) the receiver acts as a thermal mass that cools the hot compressor air and allows initial condensate to drop out before the dryer, reducing moisture load on the dryer and improving performance; (2) the receiver buffers the demand peaks so the dryer sees a more consistent flow rate rather than the surge flows that follow compressor discharge pulses. Never place the dryer before the receiver — the higher moisture load and thermal shock of untempered compressor discharge air reduce dryer efficiency and can shorten dryer component life.

Is a dryer still needed if the compressed air is only used indoors in a warm, dry climate?
+

Even in warm, dry climates, compressed air will contain moisture that condenses in distribution pipework, actuators, and tools. The compression process concentrates atmospheric moisture regardless of ambient humidity — at 100 PSI, air at 20% relative humidity outside becomes equivalent to 140% relative humidity at the compressed delivery pressure, meaning significant condensation will occur as the air cools. Without a dryer, internal corrosion in steel pipework, microbiological growth in pneumatic actuators, and moisture-induced paint defects in spray finishing are all persistent operational problems. A refrigerated dryer is standard for any oil-free system regardless of climate.
